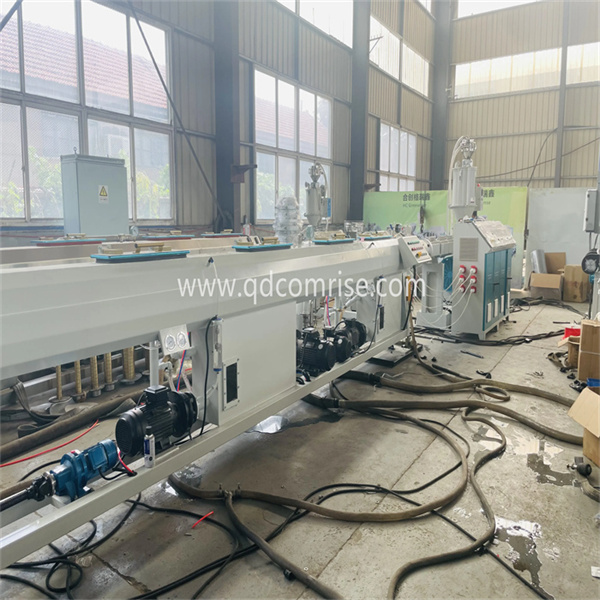

Key Components of a PPR Pipe Extrusion Line

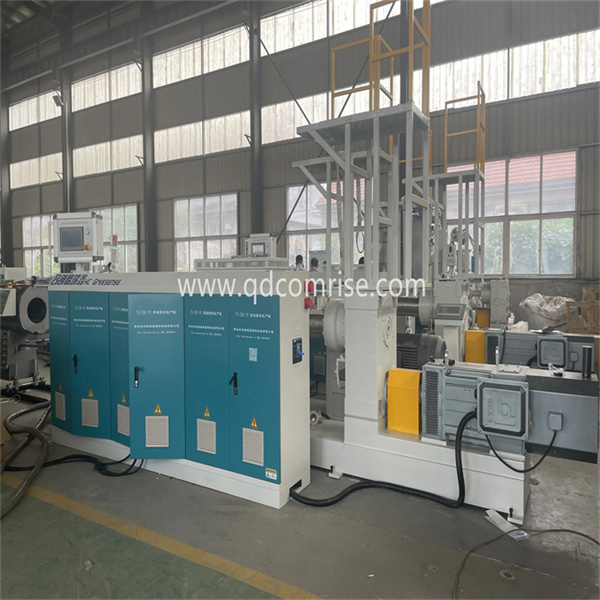

1. Extruder:

  - The heart of the production line, where PPR raw material is melted and extruded into a pipe shape.

  - Equipped with a screw and barrel designed for PPR material processing.

2. Die Head:

  - Shapes the molten PPR material into the desired pipe diameter and wall thickness.

  - Customizable for different pipe sizes (e.g., 16mm to 110mm).

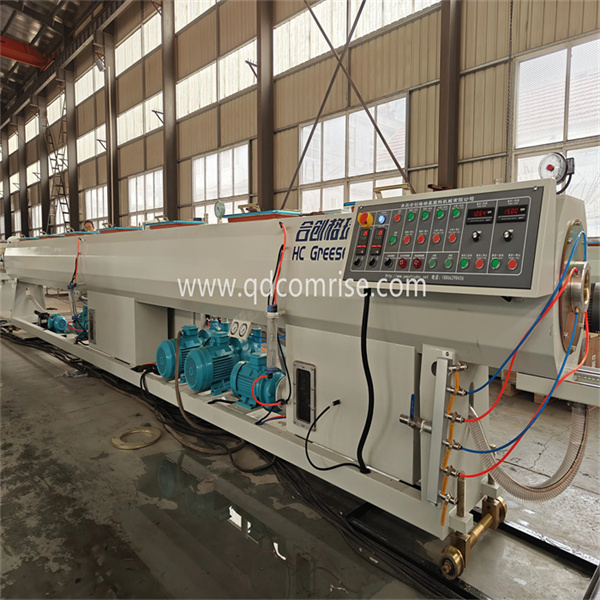

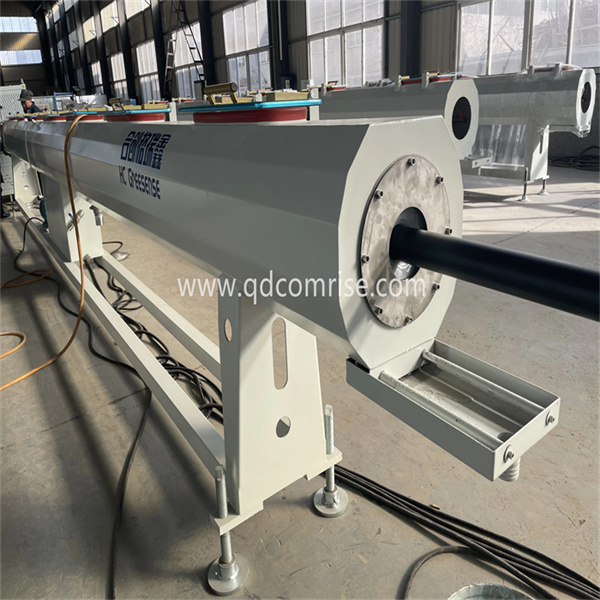

3. Vacuum Calibration Tank:

  - Cools and calibrates the extruded pipe to ensure precise dimensions and a smooth surface finish.

  - Uses a vacuum system to maintain the pipe's shape during cooling.

4. Cooling Tank:

  - Further cools the pipe to solidify it completely.

  - Typically consists of multiple water baths to ensure uniform cooling.

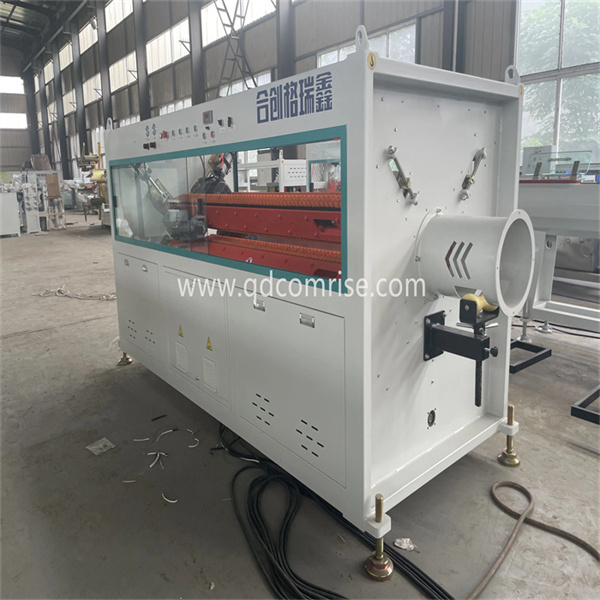

5. Haul-off Unit:

  - Pulls the pipe at a controlled speed to ensure consistent production and proper wall thickness.

  - Equipped with belts or tracks to grip the pipe gently.

6. Cutter:

  - Cuts the pipe into specific lengths (e.g., 4m or 6m) automatically.

  - Can be programmed for different cutting lengths.

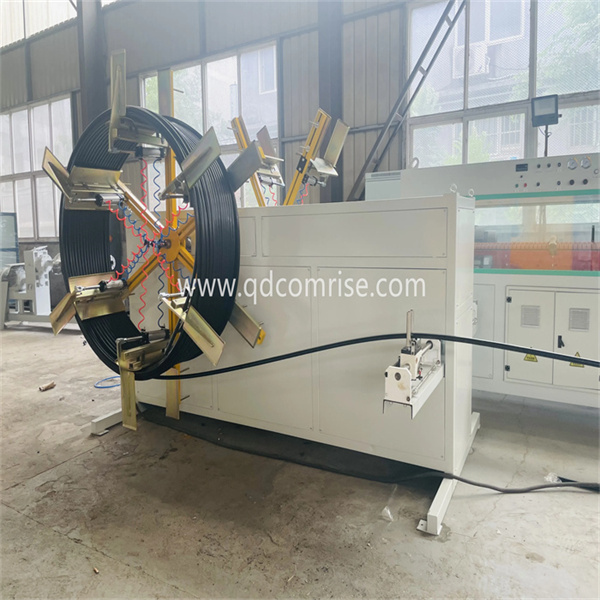

7. Stacker:

  - Collects and organizes the finished pipes for packaging or storage.

  - Can be manual or automatic, depending on the production line's sophistication.

---

 Types of PPR Pipes Produced

1. Single-Layer PPR Pipes:

  - Made from a single layer of PPR material.

  - Suitable for general-purpose applications like cold and hot water systems.

2. Three-Layer PPR Pipes:

  - Consist of an inner layer, an adhesive layer, and an outer layer.

  - Offers enhanced properties such as higher pressure resistance, better insulation, and improved durability.
